SimpleBlock-PV:

RAIL-LESS STANDING SEAM
SOLAR MOUNTING SYSTEM

EcoFasten's SimpleBlock PV Product

Rail-less racking system for Standing seam roofs

SimpleBlock-PV conforms to UL 2703 and is the innovative rail-less racking system that utilizes EcoFasten end spacers and integrated bonding mid clamps. For use as a clamp-to-seam attachment on metal standing seam roofs, the block (clamp) employs pre-installed oval-point set screws that do not penetrate the roof.

Roof Type Icon

Standing Seam metal

Racking Type Icon

Rail-less

Attachement Type Icon

Direct-Attach to seam

EcoFasten's SimpleBlock PV Product

Rail-less racking system for Standing seam roofs

SimpleBlock-PV conforms to UL 2703 and is the innovative rail-less racking system that utilizes EcoFasten end spacers and integrated bonding mid clamps. For use as a clamp-to-seam attachment on metal standing seam roofs, the block (clamp) employs pre-installed oval-point set screws that do not penetrate the roof.

Features & Benefits

  • Integrated bonding
  • Two pre-installed oval-point set screws for fast installation
  • No roof penetrations required

Compatible with Standing Seam Metal Roofs

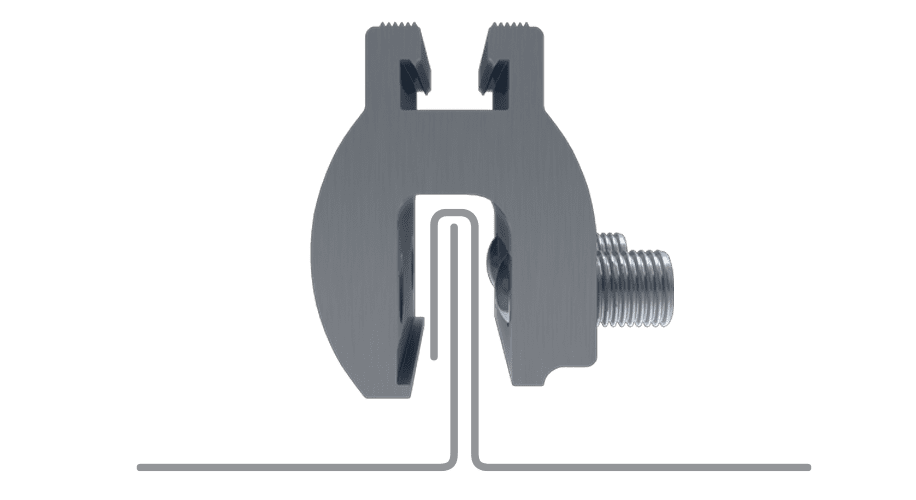

Directly Attaches to the Seam

SimpleBlock-PV fits most standing seam profiles. Simply tighten down the pre-assembled oval-point set screws to securely fasten the block to the metal seam without penetrating the roof.

Electrical ACCESSORIES

System Components

Required

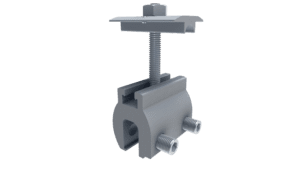

SimpleBlock-PV

SimpleBlock-PV attaches directly to the metal roof seam. Choose the correct sized spacer to form a complete rail-less system. SimpleBlock PV features integrated bonding pins to bond columns of modules together.

SR-X End Spacer

The SR-X End Spacer is available in 32, 35, and 40 mm heights to fit the majority of module frame sizes. Combine it with the SimpleBlock-PV to create an end clamp.

SimpleBlock-PV Coupler

The SimpleBlock-PV Coupler features integrated bonding pins and is used to bond the modules East-West on the roof.

Optional Accessories

EcoFasten Frame MLPE Clip

Frame MLPE Mount

The Frame MLPE Mount attaches, mounts, & fully bonds Module Level Power Electronics to the module frame using a single-bolt clip. This accessory can be used with any racking system to attach the Module Level Power Electronics to the module frame.
