RockIt:
Complete Rail-Less Racking System for a Variety of Roof Types
STREAMLINED INSTALLATION WITHOUT THE NEED FOR RAILS
The innovative RockIt system conforms to UL 2703 and is the solar industry’s premier rail-less PV racking system for use on a variety of roof types including composition shingle, tile (flat, S, and W), and metal pitched rooftops. Designed in conjunction with solar installers, the RockIt System quickly & easily installs with the use of just a single tool, speeding up the overall installation time.
The RockIt System features an easy-to-position mount alignment and a top-down leveling system that gives the installer the ability to level the PV array during or after the initial installation. Solar installers appreciate the north-south adjustability the RockIt System provides, as it allows for greater flexibility and versatility. The RockIt System is logistically intelligent since there is no need to ship, transport, or store long rails. RockIt System components are available in a black finish that complements both commercial and residential rooftop solar applications alike.
Standard State Code Compliance Certification letters that include a Professional Engineer stamped letter of certification as well as span tables are available for viewing and download by using our State Certification Letters & Span Tables tool.
STREAMLINED INSTALLATION WITHOUT THE NEED FOR RAILS
The innovative RockIt system conforms to UL 2703 and is the solar industry’s premier rail-less PV racking system for use on a variety of roof types including composition shingle, tile (flat, S, and W), and metal pitched rooftops. Designed in conjunction with solar installers, the RockIt System quickly & easily installs with the use of just a single tool, speeding up the overall installation time.
The RockIt System features an easy-to-position mount alignment and a top-down leveling system that gives the installer the ability to level the PV array during or after the initial installation. Solar installers appreciate the north-south adjustability the RockIt System provides, as it allows for greater flexibility and versatility. The RockIt System is logistically intelligent since there is no need to ship, transport, or store long rails. RockIt System components are available in a black finish that complements both commercial and residential rooftop solar applications alike.
Standard State Code Compliance Certification letters that include a Professional Engineer stamped letter of certification as well as span tables are available for viewing and download by using our State Certification Letters & Span Tables tool.
Features & Benefits
- Patented Watertight Technology
- Single tool install
- North-South adjustability & Top-down leveling system
- Florida Product Approved for any combination of 8”x12” GF-1 flashing with the RockIt Comp Slide & Lag Screw
- Fully integrated bonding
- Conforms to UL 2703
- Patent information available here
- Compatible with our all-new Design Assistant calculator tool
Compatible With a Variety of Rooftops

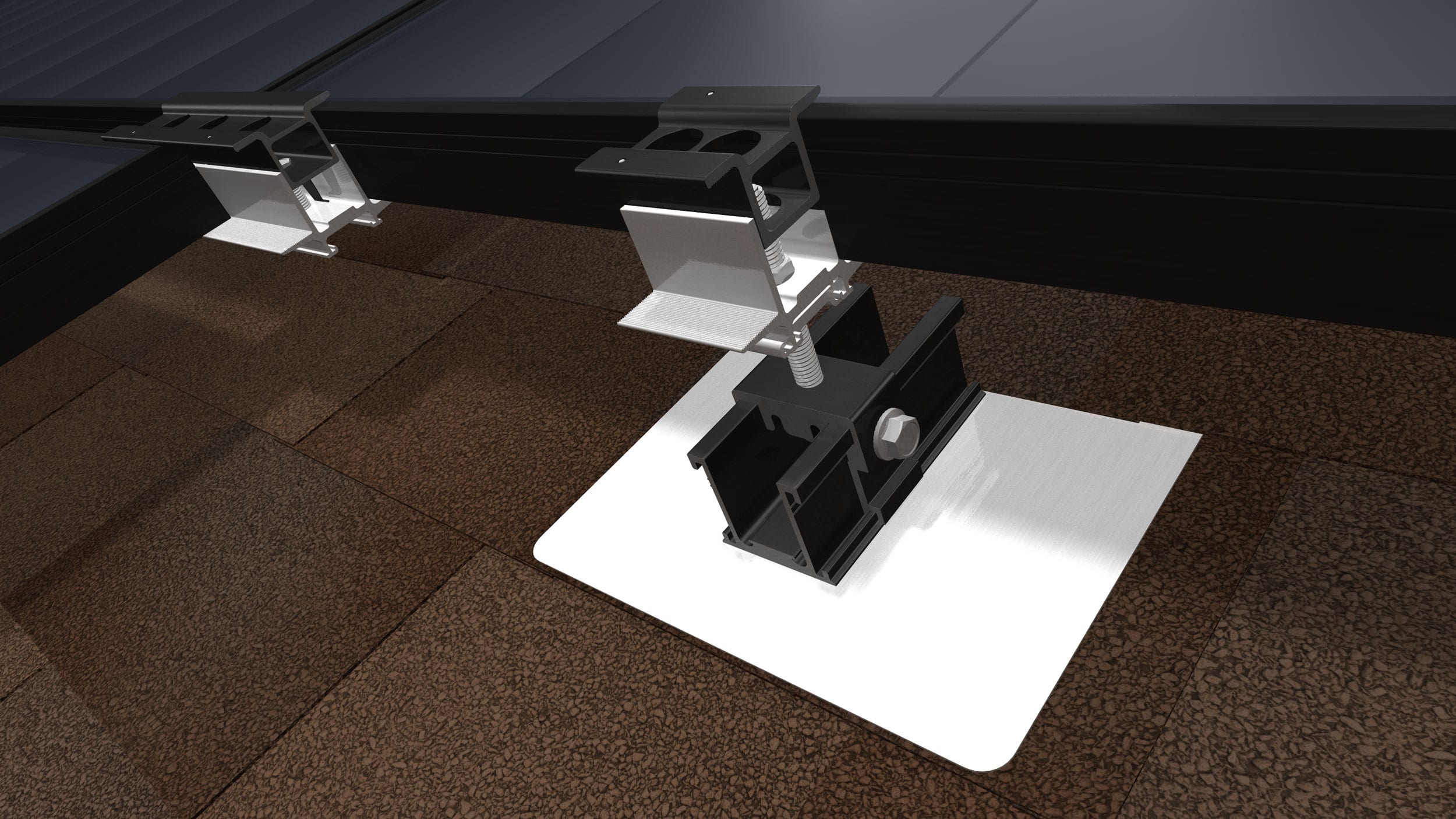

COMPOSITION SHINGLE ROOFS
Combine the RockIt Comp Slide with EcoFasten’s patented watertight GF-1 Flashing to attach the RockIt System to composition shingle rooftops. GF-1 is available in mill and black finishes.
COMPOSITION SHINGLE ROOFS
RockIt Smart Slide is a patent-pending, fast-installing, simple solution for composition shingle roofs. Eliminates the need to pry up shingle courses and install a metal flashing.

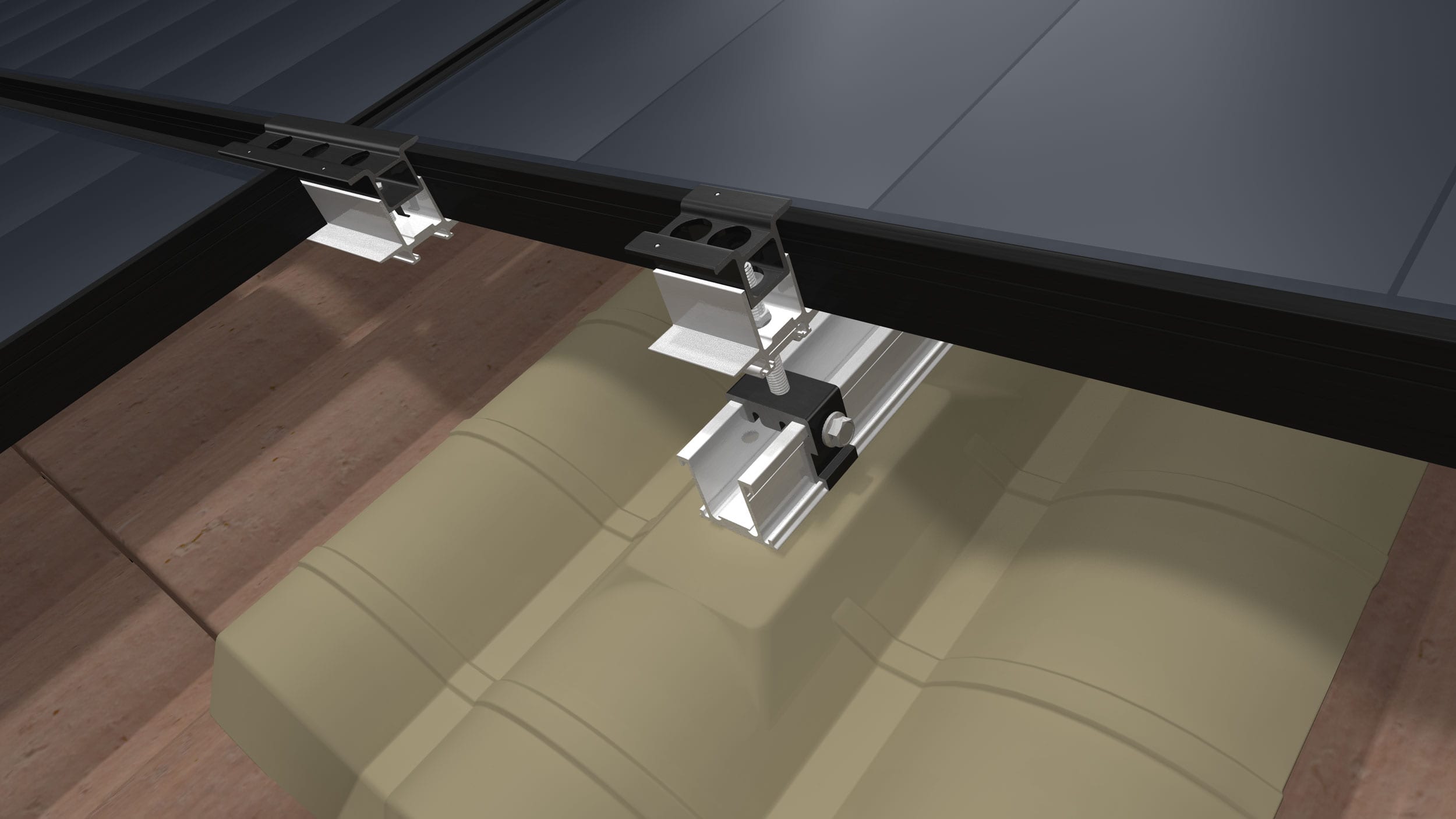

FLAT, S & W-SHAPED TILE ROOFS

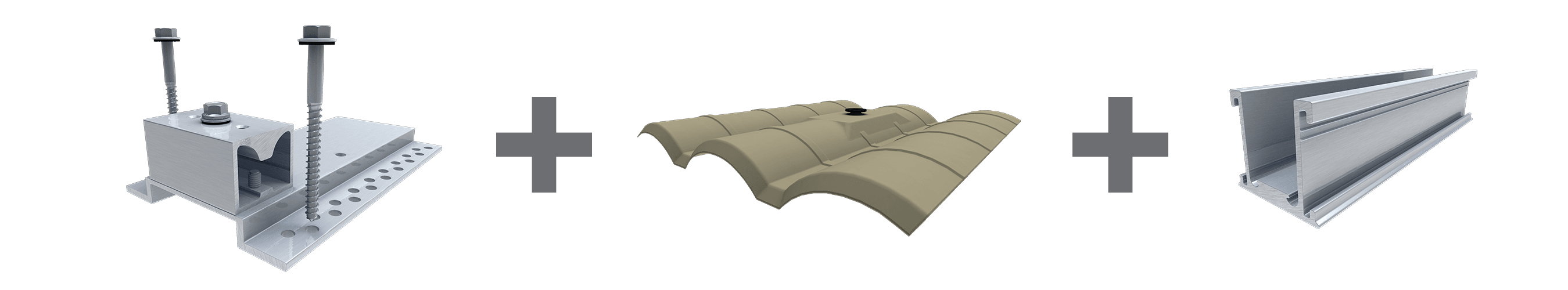

The RockIt System quickly installs onto most Flat, S, and W-shaped tile roofs without the need to cut or grind tiles. Combine the appropriate Tile Mounting Base and Tile Flashing with the Tile Slide.

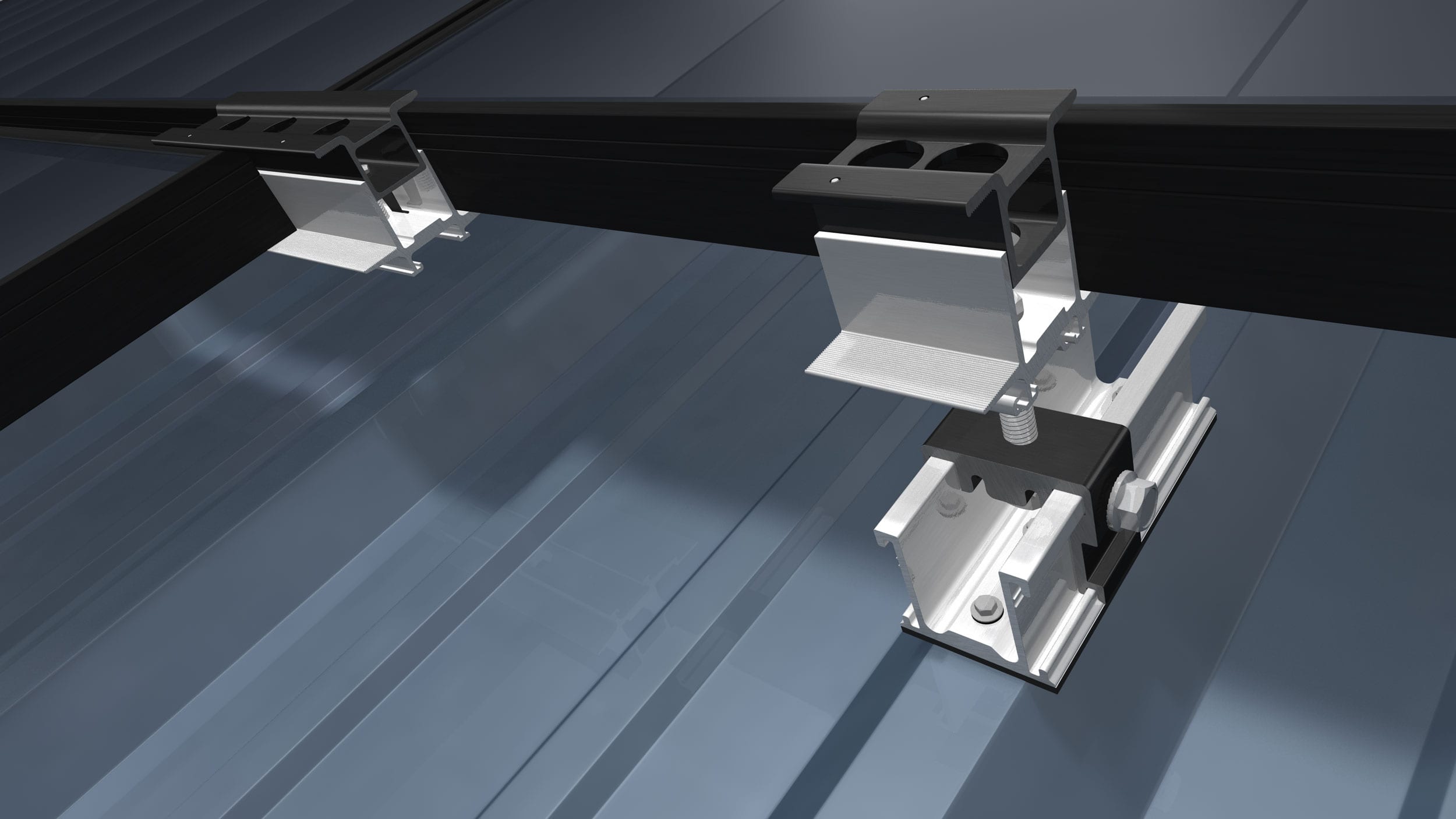

CORRUGATED METAL ROOFS
The RockIt System can be installed onto corrugated metal roofs using the SteelDeck Slide, which attaches directly to raised portion of the corrugation with two self-piercing metal screws.
Standing Seam Metal Roofs
Combine the RockIt Comp Slide with SimpleBlock-U for a fast installation on vertical/double lock metal standing seam roofs.
Low Slope Roofs
Connect the RockIt Comp Slide with SimpleGrip-SQ for a self-flashed solution on low slope roofs such as rolled asphalt and TPO.
Electrical ACCESSORIES
System Components
Required
RockIt Mount
Featuring integrated bonding pins, the RockIt Mount connects to any RockIt Slide and can be easily adjusted north and south for fast alignment.
RockIt Coupling
The fast installing RockIt Coupling is easily attached to the module frame to bridge the gap between modules.
RockIt Skirt
The sleek black skirt installs first and acts as a guide that allows for the entire system to be installed quickly and in perfect alignment. The aesthetic skirt End Cap doubles as a skirt coupling device. The RockIt Skirt is available in 65″ and 80″ lengths.
Frame MLPE Mount
The Frame MLPE Mount attaches, mounts, & fully bonds Module Level Power Electronics to the module frame using a single-bolt clip. This accessory can be used with any racking system to attach the Module Level Power Electronics to the module frame.
Choose Your Roof Slide
RockIt Smart Slide
Patent pending, fast installing simple solution for composition shingle roofs. Eliminates the need to pry up shingle courses and install a metal flashing. Features UltraGrip Technology™

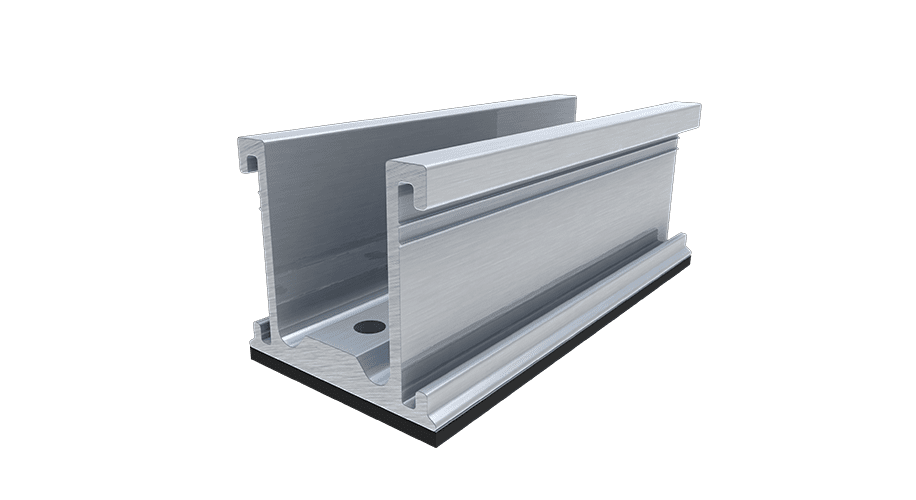

RockIt Comp Slide
The RockIt Comp Slide combines with EcoFasten’s GF-1 Flashing for a fast and watertight installation on composition shingle roofs.

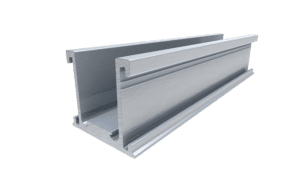

RockIt Tile Slide
Combine the RockIt Tile Slide with the appropriate Tile Mounting Base and Tile Flashing to install the RockIt System to a Flat, S, or W-shaped tile roof.

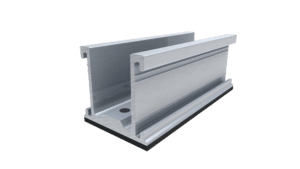

Steeldeck Slide
Install the RockIt System to a corrugated metal roof using the direct-attach Rockit SteelDeck Slide. The slide features an EPDM rubber base to keep out water.
Choose Your Roof Attachment
GF-1 Flashing
EcoFasten’s popular GF-1 Flashing for composition shingle roofs is available in mill and black finishes and features our patented watertight technology. Combine it with the RockIt Slide for a fast and easy installation.

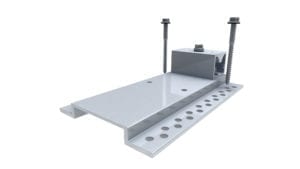

Tile Base
The Tile Mounting system is available in three sizes to match Flat, S, and W-shaped tiles. Install the Tile Base to a rafter and then combine it with the appropriate shaped Tile Flashing and the RockIt Tile Slide to install the RockIt system on to tile roofs.

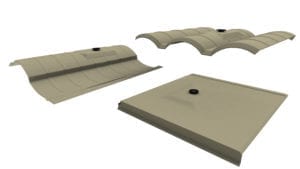

Tile Flashing
Eliminate the need for cutting or grinding tiles with EcoFasen’s replacement Tile Flashing. Combine the flashing profile of your choice with the Tile Mounting Base and RockIt Tile Slide to securely attach the RockIt System majority of tile rooftops.
SimpleBlock-U
The SimpleBlock-U mounts directly to most vertical/double lock standing seam metal roofs. Two oval-point set screws are pre-installed, eliminating the need to penetrate the roof. Combine SimpleBlock-U with the ClickFit L-Foot to install the ClickFit System or with the RockIt Comp Slide to install the RockIt System.
SimpleGrip-SQ
The SimpleGrip-SQ is designed to attach PV modules to rolled-asphalt and other low slope roofs. The base is compressed between two layers of adhesive tape to create a watertight seal without the need for additional flashing. Combine SimpleGrip-SQ with the RockIt Comp Slide to install the RockIt system.
Accessories
Smart Conduit Mount
Smart Conduit Mount can be attached to a rafter or directly to composition shingle roofs to run conduit across the roof in any direction. The integrated flashing utilizes our proprietary UltraGrip Technology™, creating a watertight seal.
Junction Box
Our Junction Box can be deck-mounted or rail-mounted and is specifically sized to house four strings (DC/AC). Integrated weep holes, multiple oriented screw bosses, and pre-drilled guides on three sides (South, East, and West) provide a fast, assisted installation.
