ClickFit:
FAST-INSTALLING RAIL-BASED
SOLAR RACKING SYSTEM

COMPLETE RAIL-BASED RACKING SYSTEM FOR A VARIETY OF ROOF TYPES

ClickFit conforms to UL 2703 and is one of the fastest installing rail-based systems in the industry. Our newly enhanced ClickFit L-Foot features a pre-installed rail bolt that, along with the “Click-In rail assembly,” allows the ClickFit rails to be set and clamped securely in place. The rails can be connected in seconds to any of EcoFasten’s composition shingle, tile, and metal roof mounts. The ClickFit system is made of robust materials, such as aluminum and coated steel, to ensure corrosion resistance and longevity. ClickFit has been tested in extreme weather conditions including wind, fire, and snow.

Roof Type Icon
CompoSITION SHINGLE, Tile, Metal
Racking Type Icon
Rail-Based
Attachement Type Icon
Structural, Direct-Attach

COMPLETE RAIL-BASED RACKING SYSTEM FOR A VARIETY OF ROOF TYPES

ClickFit conforms to UL 2703 and is one of the fastest installing rail-based systems in the industry. Our newly enhanced ClickFit L-Foot features a pre-installed rail bolt that, along with the “Click-In rail assembly,” allows the ClickFit rails to be set and clamped securely in place. The rails can be connected in seconds to any of EcoFasten’s composition shingle, tile, and metal roof mounts. The ClickFit system is made of robust materials, such as aluminum and coated steel, to ensure corrosion resistance and longevity. ClickFit has been tested in extreme weather conditions including wind, fire, and snow.

Features & Benefits

  • Pre-installed rail bolt
  • Fully integrated bonding
  • Conforms to UL 2703
  • Compatible with our all-new Design Assistant calculator tool

Compatible With a Variety of Rooftops

Composition Shingle Roofs

Combine the versatile ClickFit L-Foot with our patented watertight GF-1 Flashing for installation on composition shingle roofs. GF-1 is available in mill and black finishes.

Composition Shingle Roofs

Smart Foot can be attached directly to composition shingle roofs without a metal flashing. The integrated flashing utilizes our proprietary UltraGrip Technology ™, creating a watertight seal.

Flat, S & W-Shaped Tile Roofs

Use the adjustable Universal ClickFit Tile Hook for attaching the ClickFit system to tile roofs. Works with Flat, S, and W-shaped tiles.

standing seam metal roofs

Combine the ClickFit L-Foot with SimpleBlock-U for a fast installation on vertical/double lock metal standing seam roofs.

Electrical ACCESSORIES

System Components

Required

ClickFit Rail

The ClickFit rail connects to both the Click Fit L-Foot and the ClickFit Tile Hook without the need for bolts or fasteners. Mid and End Clamps simply click on to the top of the rail where they remain self standing and easily able to slide. The ClickFit rail is available in 165.4″ and 171.5″ lengths for easy array design.

Mid Clamp

The click-on Mid Clamp features integrated bonding pins and fits module frames sized 30-50MM.

End Clamp

One Click-on End Clamp fits modules from 30-40MM in height.



ClickFit Rail Splice

Tool-free fully bonded structural internal splice installs in seconds.

Choose Your Roof Attachment

click fit smart foot with clicker and 2 screws

ClickFit Smart Foot

Smart Foot can be attached directly to composition shingle roofs without a metal flashing. The integrated flashing utilizes our proprietary UltraGrip Technology™, creating a watertight seal.

ClickFit L-Foot

The ClickFit L-foot combines with the watertight GF-1 Flashing to mount the system to composition shingle roofs. The rail simply clicks into the L-foot and is tightened in place with a pre-installed bolt.

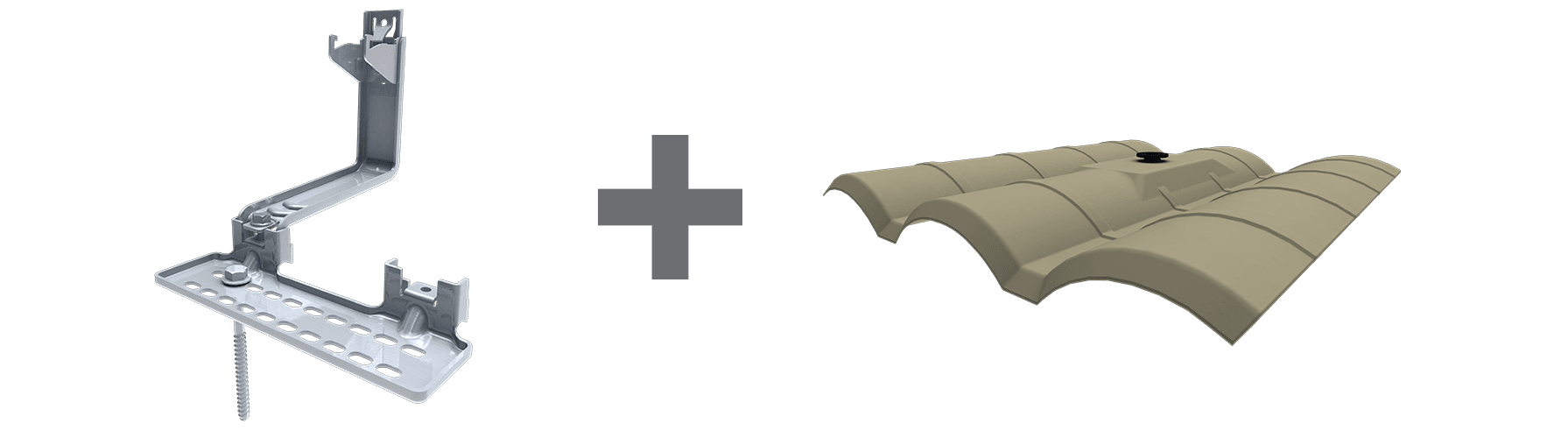

ClickFit Universal Tile Hook

The adjustable ClickFit Universal Tile Hook works with Flat, S and W-shaped tiles. Combine the hook with one of EcoFastens Tile Hook Flashings for a fast install that does not require cutting or grinding the tile. The Universal Tile Hook is compatible with all sizes of ClickFit rail. Optional sub-flashing available.

Tile Hook Flashing

Eliminate the need for cutting or grinding tiles with EcoFasen’s Tile Hook Flashing. The flashing can be cut using a pair of tin snips to create a pass through for the ClickFit Tile Hook arm. Available in Flat, S, and W-shaped profiles to fit the majority of tiles.

EcoFasten's SimpleBlock U Product

SimpleBlock-U

The SimpleBlock-U mounts directly to most vertical/double lock standing seam metal roofs. Two oval-point set screws are pre-installed, eliminating the need to penetrate the roof. Combine SimpleBlock-U with the ClickFit L-Foot to install the ClickFit System or with the RockIt Comp Slide to install the RockIt System.

Optional Accessories

Smart Conduit Mount

Smart Conduit Mount can be attached to a rafter or directly to composition shingle roofs to run conduit across the roof in any direction. The integrated flashing utilizes our proprietary UltraGrip Technology™, creating a watertight seal.

click fit universal tile hook sub flashing image

ClickFit Universal Tile Hook Sub-flashing

Aluminum sub-flashing protects the ClickFit Universal Tile Hook against water intrusion at the deck level.

Junction Box

Our Junction Box can be deck-mounted or rail-mounted and is specifically sized to house four strings (DC/AC). Integrated weep holes, multiple oriented screw bosses, and pre-drilled guides on three sides (South, East, and West) provide a fast, assisted installation.

Skirt

As an option, the RockIt skirt can be installed to any module frame using Skirt Clamps. Skirt segments are available in 65″ and 80″ and include aesthetic end clamps that double as interconnection couplers.

End Cap

Optional slide-on End Caps provide an aesthetic finish and allow for End Clamps to be accurately positioned on the rail in seconds.

ClickFit MLPE Mount

The ClickFit MLPE Mount attaches and secures the Module Level Power Electronics to the top of the rail. The MLPE Mount is designed for use with our rail-based ClickFit system and can be placed anywhere along the rails.

ClickFit Wire Management Clamp

ClickFit Wire Management Clamp

The ClickFit Wire Management Clamp is designed for use with our rail-based ClickFit Racking System, and thanks to the two-piece construction, this clamp provides a quick installation to the rail. The clamp secures up to four PV wires or two trunk cables in place using one self-piercing screw.





EcoFasten's wire-clip

ClickFit Wire Clip

The Stainless Steel ClickFit Wire Clip clicks onto the top of the rail and accommodates 1-3 PV wires or 1 Q cable and 1-2 PV wires. The clip responds to tension, so pulling wires through is easy. Since wire can run in any direction on the roof, this clip can be installed on both the north and the south side of each rail for optimum wire management.

EcoFasten Bonding Jumper

Module Jumper

The Module Jumper slides onto the frame of the PV module, bonding N-S (ClickFit) or E-W (RibFit). One Module Jumper per row or column of modules is required. Our Module Jumper can be installed quickly & easily to conform to UL 2703.
