SimpleRack:
Rail-less solar racking system for concrete roofs
Rail-less fixed-position racking system

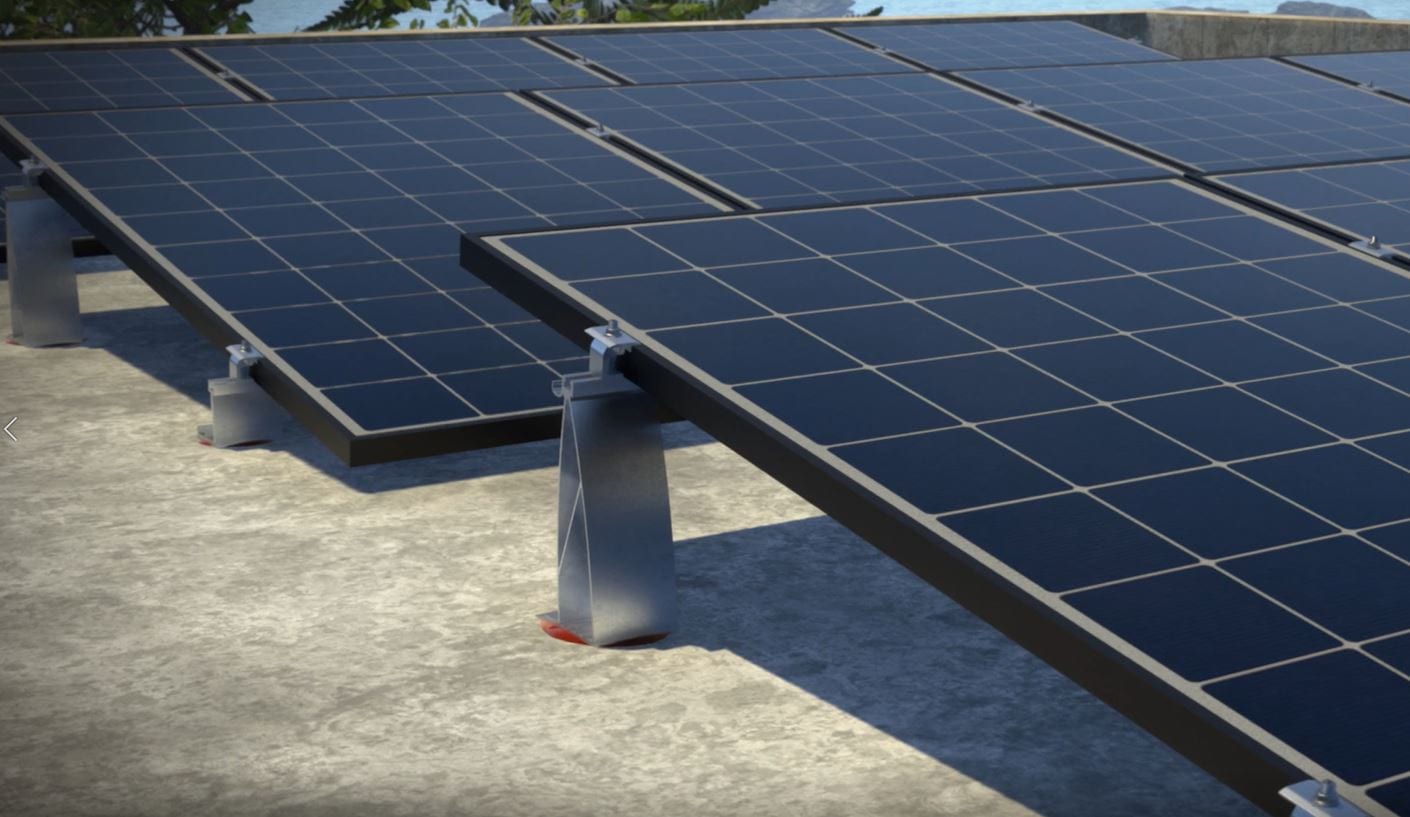

The rail-less SimpleRack System is engineered specifically for use in flat concrete roofing applications. The system is ideal for fast, easy fixed-positioning mounting. SimpleRack provides integrated bonding and conforms to UL 2703.
Flat Concrete
rail-less
DIRECT-ATTACH
Rail-less fixed-position racking system
The rail-less SimpleRack System is engineered specifically for use in flat concrete roofing applications. The system is ideal for fast, easy fixed-positioning mounting. SimpleRack provides integrated bonding and conforms to UL 2703.
Features & Benefits
- Rail-less racking that conforms to UL 2703
- 10° fixed-position mounting solution
- Integrated bonding
- Tested to 170 mph winds (Exposure D)
- Patent information available here
Compatible With Flat Concrete Roofs
Single-Bolt Attachment

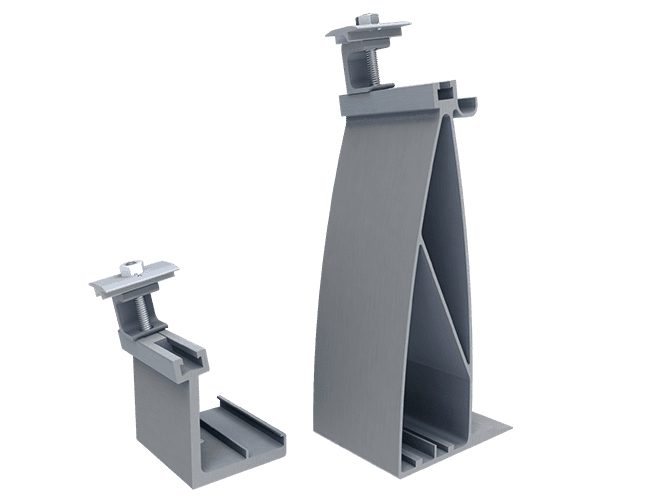

The SR-X Leg Kit is directly fastened to flat concrete roofs using appropriate bolts or screws. A short leg and a tall leg allow for a fast installing, fixed-position racking solution with a 10° tilt.
Electrical ACCESSORIES
System Components
Required
SR-X End Spacer
The SR-X End Spacer is available in 32, 35, and 40 mm heights to fit the majority of module frame sizes. Combine it with the SimpleBlock-PV to create an end clamp.

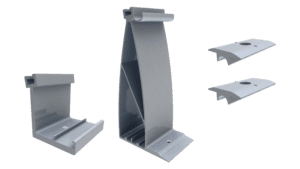

SR-X Leg Kit
The SR-X Leg kit includes both the short and tall leg, along with clamp heads and bolts. Combine the kit with the End Spacer of your choice to form a complete fixed-position rail-less racking system.
Accessories
Frame MLPE Mount
The Frame MLPE Mount attaches, mounts, & fully bonds Module Level Power Electronics to the module frame using a single-bolt clip. This accessory can be used with any racking system to attach the Module Level Power Electronics to the module frame.
